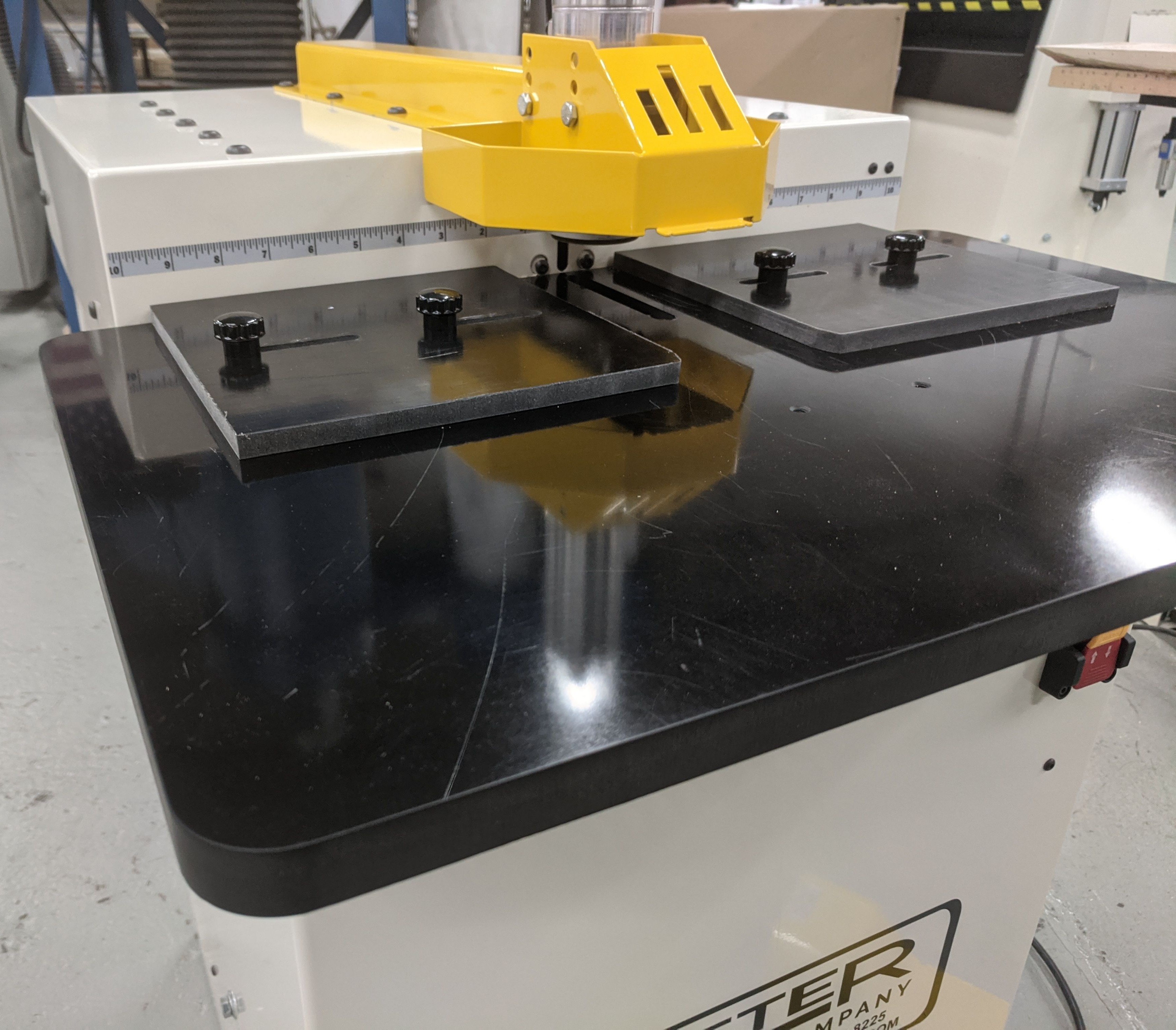

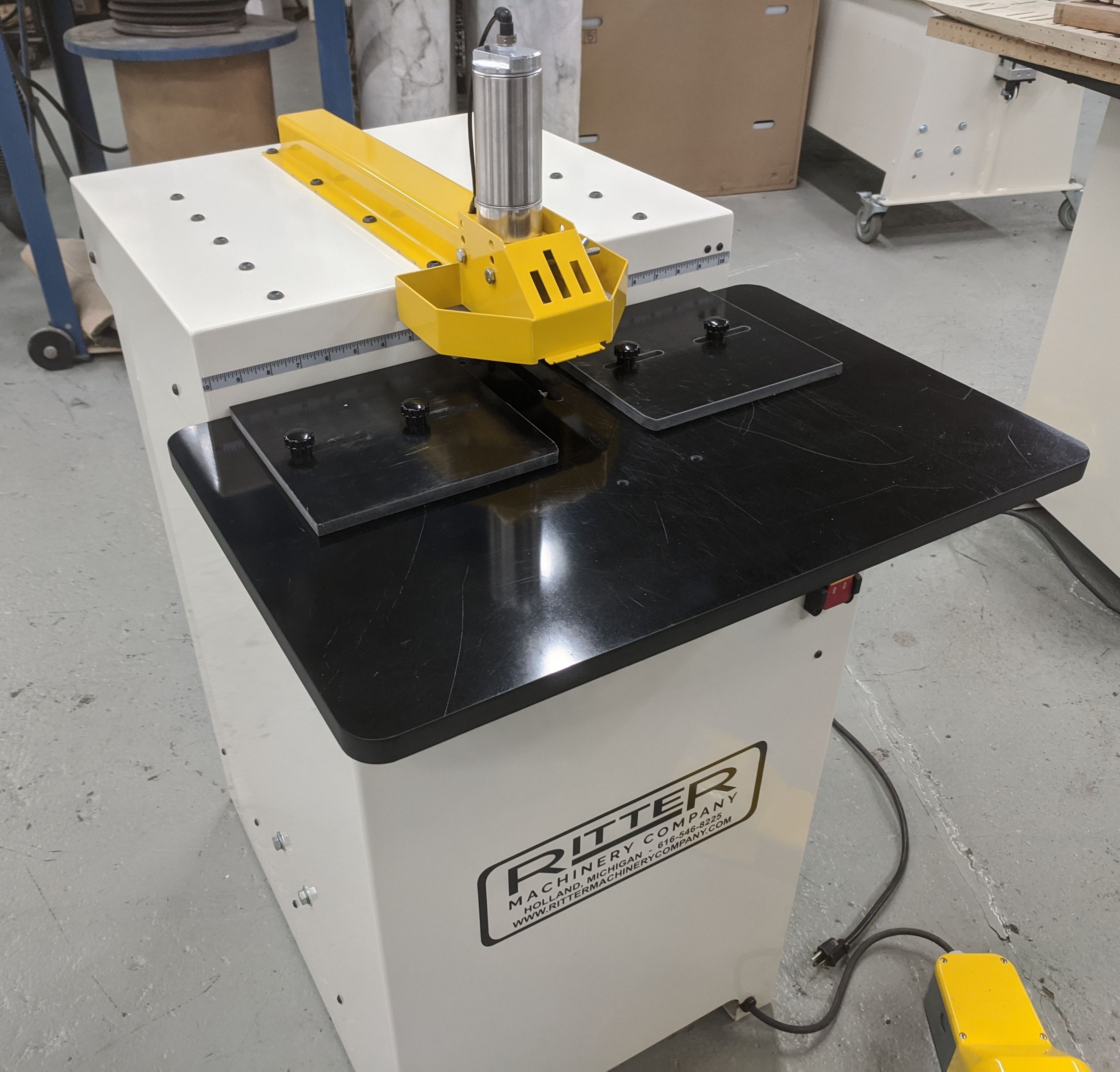

Ritter R2061
Low Angle Pocket Cutter

Odoo • A picture with a caption

Low Angle

The R2061 has a low angle of 6°
and can handle material up to 2" thick.

PLC Controlled Cycle

The R2061 is foot pedal operated and has a cycle time of 2 seconds.

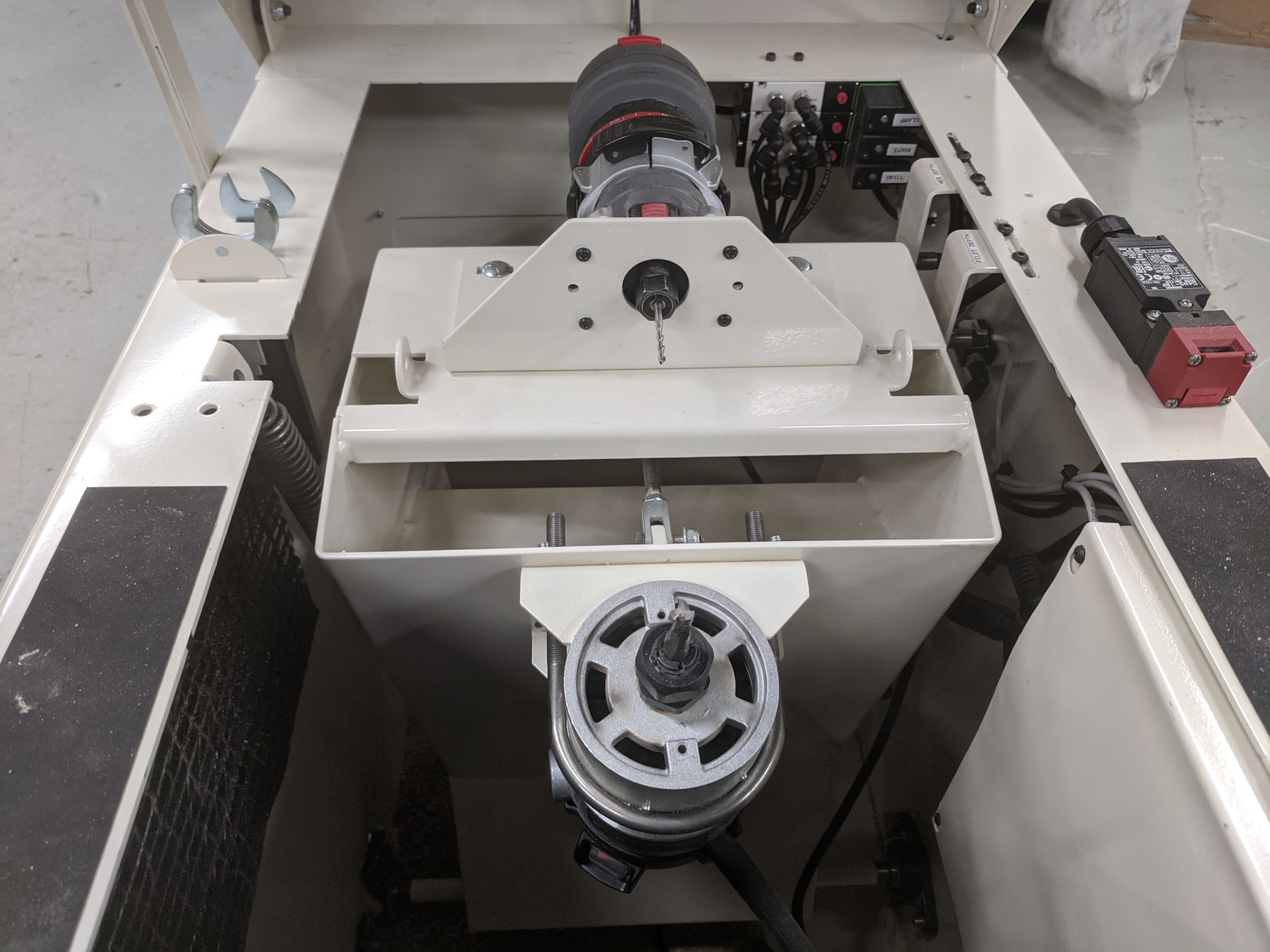

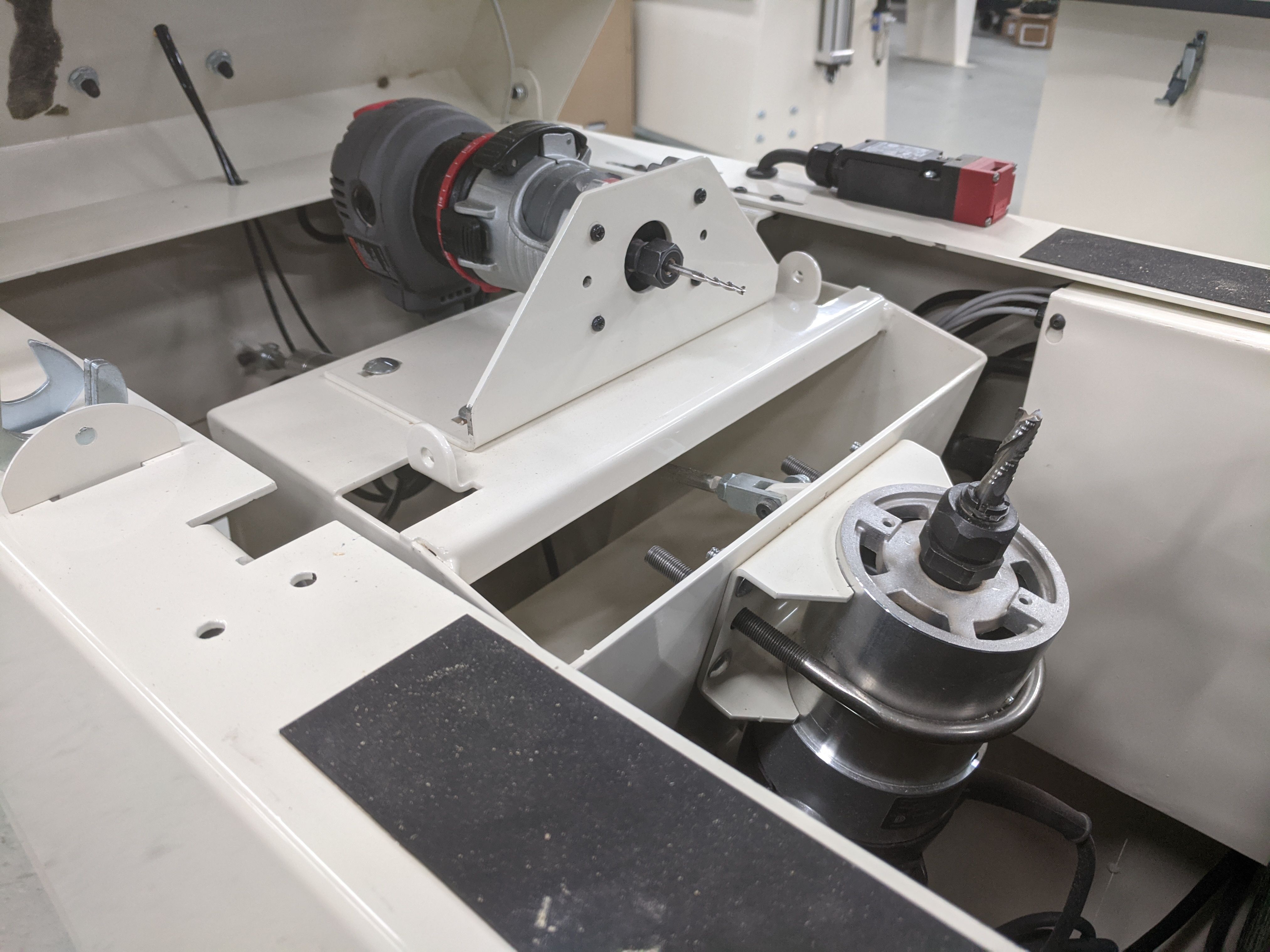

Tooling Included

The R2061 comes standard with a 3/8"
pocket cutter and 9/64" pilot bit.




Router Bit: 3/8” Solid Carbide, Rough Mill
Drill Bit: 9/64” Brad and Spur TiN-Coated Bit
Router: 27,500 RPM, 11 A, 1.75 HP
Drill: 31,000 RPM, 4.5 A
Electrical: 110V 15A
Air: 2 CFM at 80 - 100 PSI
Work height: 36"
Footprint: 27.75" x 20.5"
Table Area: 15.75" x 23.75" Dust Port: 4"



Shipping Weight: 300 LBS
Shipping Dimensions: 38" x 25"
