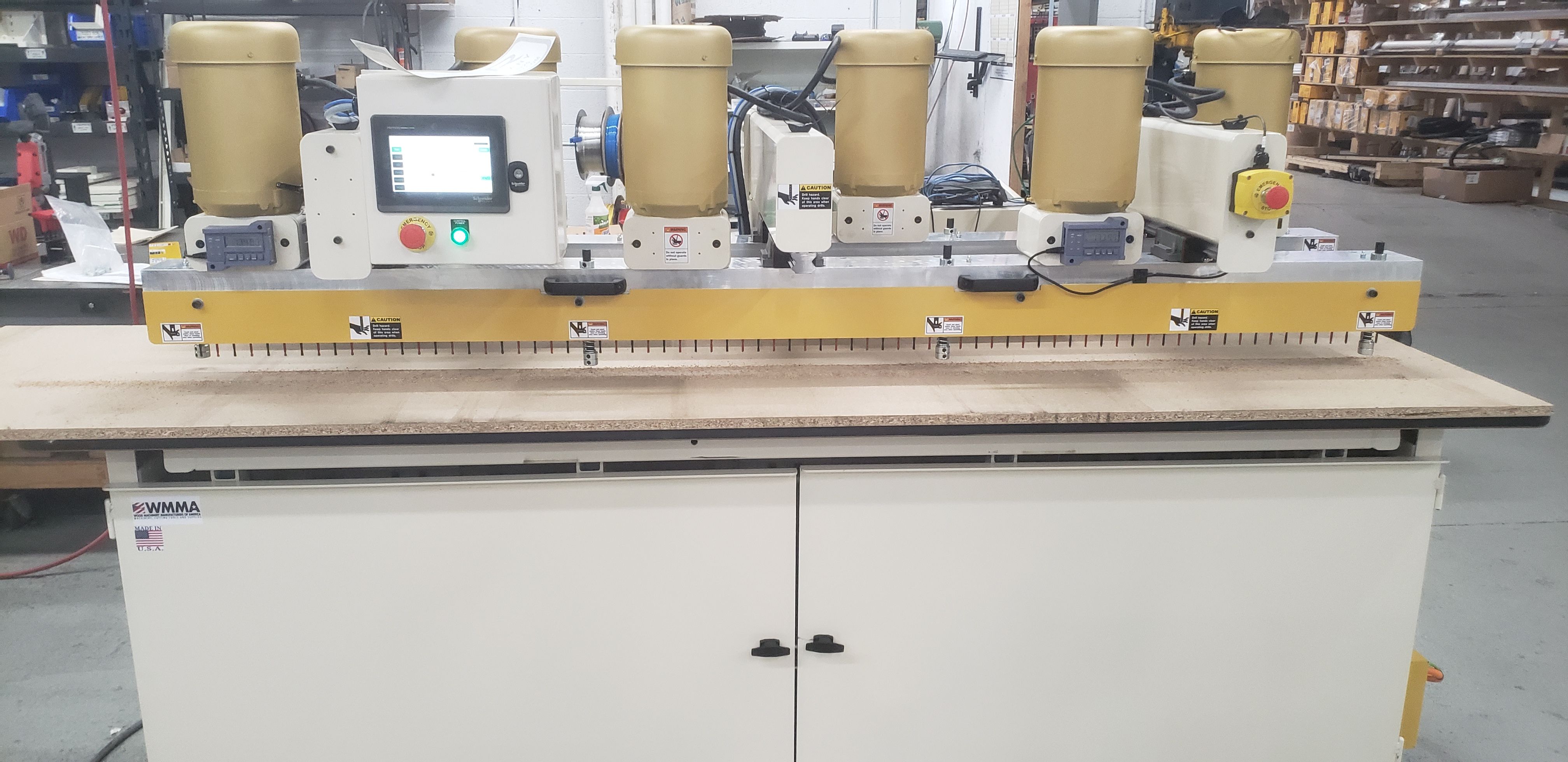

R152 - 152 Spindle CNC Double Row Drill System

Standard Features

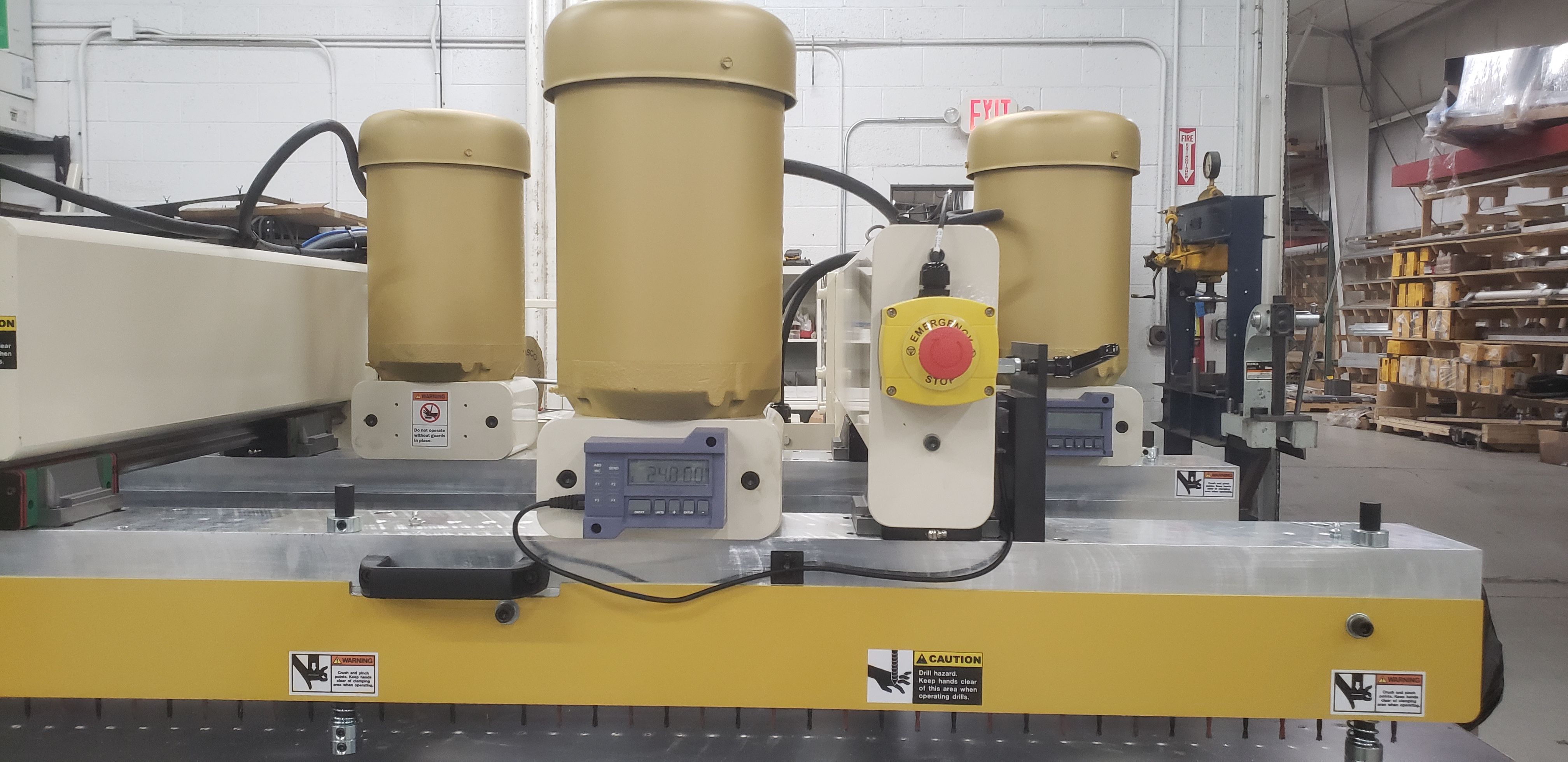

• (2) 76- Spindle Gear Driven Heads

• (6) 3 HP Spindle Drive Motors, TEFC

• 32mm Spindle Centers

• 10mm Bored Collets

• (39) Right Hand, (36) Left Hand

• CNC Table Feed Control

• Electronic Drill Head Squaring

• Foot Actuated Boring Cycle

• Magnetic Controls,

• Wired 3-Phase 220 Volt, 60 Hz

• Tooling Not Included

• 54" x 136" Floor Area

• 30" X 108" Work Surface

• Designed and Manufactured in the USA

• Touch Screen HMI

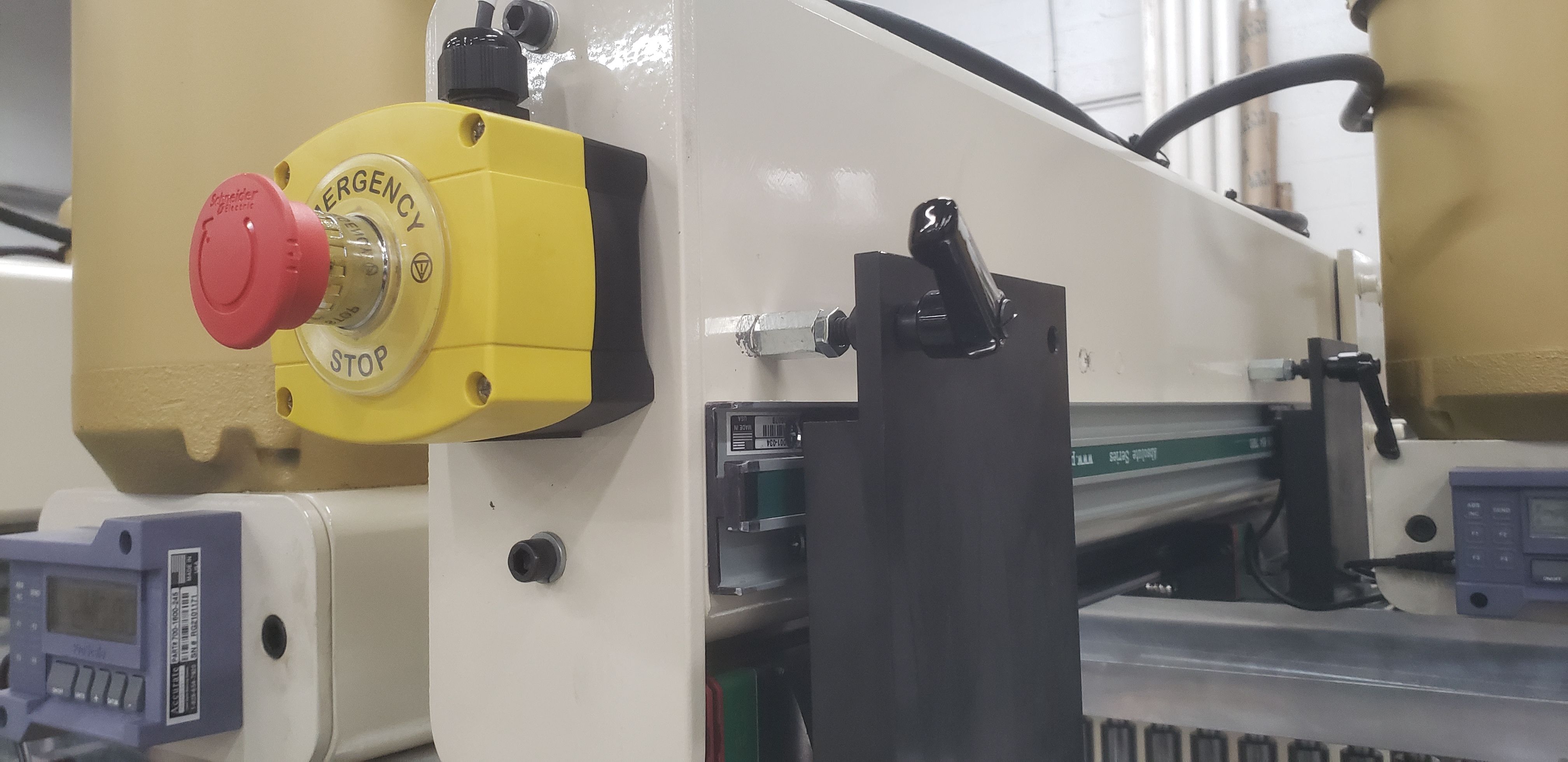

• (2) Emergency Stop Buttons

• 76-Spindle Gear Driven Drill Head

• Programmable Boring Depth, Servo Driven

• Triple Precision Table Guide Rails

• 1-1/4"" Maximum Material Thickness

• 108" Back Fence with (Positioning stops
